Build a Fieldtype

Prerequisites

Fieldtypes have a JavaScript component, so you will need to have a JavaScript entry file that gets loaded in the Control Panel. We recommend using Vite for this.

Throw an alert('It works!') into your JS file. Once you see that appear in the browser, you're ready to build your fieldtype!

Registering

Once created (we'll get to that in a moment), a fieldtype will need to be registered.

Any fieldtype classes inside the App\Fieldtypes namespace will be automatically registered.

To store them elsewhere, manually register an action in a service provider by calling the static register method on your fieldtype's class.

public function boot()
{
    Your\Fieldtype::register();
}

Creating

Fieldtypes have a PHP component and JS component. You can use a command to generate both pieces:

php please make:fieldtype TogglePassword

Vue component

The Vue component is responsible for the view and data binding. It's what your user will be interacting with.

The make:fieldtype command would have generated a Vue component into resources/js/components/fieldtypes/TogglePassword.vue.

You should register this Vue component within your JS entry file (cp.js):

import UppercaseFieldtype from './components/fieldtypes/Uppercase.vue';

Statamic.booting(() => {
    // Should be named [snake_case_handle]-fieldtype
    Statamic.$components.register('uppercase-fieldtype', UppercaseFieldtype);
});

Your component should use our Fieldtype composable for defining props & emits, updating the field value and accessing meta.

Other than that, your component can do whatever you like!

Best Practice

Do not modify the value prop directly. Instead, call update(value) (or updateDebounced(value)) from the composable and let Statamic handle the update appropriately.

Example Vue component

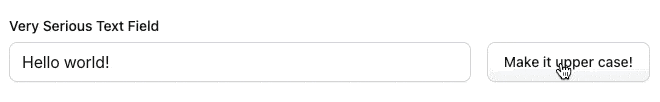

For this example we will create an input field with a button to make the text uppercase:

<script setup>
import { Fieldtype } from '@statamic/cms';
import { Input, Button } from '@statamic/cms/ui';

const emit = defineEmits(Fieldtype.emits);
const props = defineProps(Fieldtype.props);
const { expose, update } = Fieldtype.use(emit, props);
defineExpose(expose);

function makeItUppercase() {
    update(props.value.toUpperCase());
}
</script>

<template>
    <div>
        <Input :model-value="value" @update:model-value="update" />
        <Button @click="makeItUppercase">Make it upper case!</Button>
    </div>
</template>

What's happening?

1. The Fieldtype composable is providing the emits and props we need to define, as well as the expose, update and updateDebounced methods.
2. When you type into the text field, an update method is called which emits an event. Statamic listens to that event and updates the value prop.

Those are the two requirements satisfied. ✅

In addition to that, when the button is clicked, we're converting the string to uppercase and calling update in our function.

PHP Class

The PHP class can be very barebones. At the most basic level, it just needs to exist in order to let Statamic know about it.

<?php

namespace App\Fieldtypes;

use Statamic\Fields\Fieldtype;

class TogglePassword extends Fieldtype
{
    //
}

Of course, you may add functionality to it, outlined below.

Fieldtype icon

You can use an existing SVG icon from Statamic's resources/svg directory by passing its name into an $icon class variable, by returning a full SVG as a string, or returning it as a string from the icon() method.

<?php

class CustomFieldtype extends Fieldtype
{
    protected $icon = 'tags';
    // or
    protected $icon = '<svg> ... </svg>';
    // or
    function icon()
    {
        return file_get_contents(resource_path('svg/left_shark.svg'));
    }
}

Fieldtype categories

When using the blueprint builder inside the control panel, your fieldtype will be listed under the special category by default. To move your fieldtype into a different category, define the $categories property on your class:

<?php

class CustomFieldtype extends Fieldtype
{
    public $categories = ['number'];
}

You can select from any of the keys available in the FieldtypeSelector:

• text
• controls
• media
• number
• relationship
• structured
• special

Fieldtype keywords

You may specify keywords to be used when searching in the fieldtype selector.

For example: if you search for "rich text" or "gutenberg", the Bard fieldtype will be returned as a result.

<?php

class CustomFieldtype extends Fieldtype
{
    protected $keywords = ['file', 'files', 'image', 'images', 'video', 'videos', 'audio', 'upload'];
}

Configuration fields

You can make your fieldtype configurable with configuration fields. These fields are defined by adding a configFieldItems() method on your PHP class that returns an array of fields.

protected function configFieldItems(): array
{
    return [
        'mode' => [
            'display' => 'Mode',
            'instructions' => 'Choose which mode you want to use',
            'type' => 'select',
            'default' => 'regular',
            'options' => [
                'regular' => __('Regular'),
                'enhanced' => __('Enhanced'),
            ],
            'width' => 50
        ],
        'secret_agent_features' => [
            'display' => 'Enable super secret agent features',
            'instructions' => 'Can you even handle these features?',
            'type' => 'toggle',
            'default' => false,
            'width' => 50
        ],
    ];
}

The configuration values can be accessed in the Vue component using the config property.

return this.config.mode; // regular

Options

Hot Tip!

A little code diving will reveal all the possible config options for each field type. Look for the configFieldItems() method in each class here: https://github.com/statamic/cms/tree/6.x/src/Fieldtypes

Adding configuration fields to existing fieldtypes

Sometimes you may want to add a config field to another fieldtype rather than creating a completely new one.

You can do this using the appendConfigField or appendConfigFields methods on the respective fieldtype.

use Statamic\Fieldtypes\Text;

// One field...
Text::appendConfigField('group', [
  'type' => 'text',
  'display' => 'Group',
]);

// Multiple fields...
Text::appendConfigFields([
  'group' => ['type' => 'text', 'display' => '...',],
  'another' => ['type' => 'text', 'display' => '...',],
]);

Processing

You may need to modify the data going to and from the browser.

The preProcess method allows you to modify the original value into what the Vue component requires.
The process method does the opposite. It takes the Vue component's value and allows you to modify it for what gets saved.

For example, the YAML fieldtype stores its value in content as an array but the field needs it as a string in order for it to be editable:

public function preProcess($value)
{
    return YAML::dump($value); // dump a yaml string from an array
}

In the other direction, it takes the YAML string and needs to convert it back to an array when saving:

public function process($value)
{
    return YAML::parse($value); // parses a yaml string into an array
}

(These snippets are simplified for example purposes.)

Meta Data

Fieldtypes can preload additional "meta" data from PHP into JavaScript. This can be anything you want, from settings to eager loaded data.

public function preload()
{
    return ['foo' => 'bar'];
}

This can be accessed in the Vue component using the meta prop.

return props.meta; // { foo: bar }

If you have a need to update this meta data on the JavaScript side, use the updateMeta method. This will persist the value back to Vuex store and communicate the update to the appropriate places.

const props = defineProps(Fieldtype.props);
const { updateMeta } = Fieldtype.use(emit, props);

updateMeta({ foo: 'baz' });
props.meta; // { foo: 'baz' }

Example use cases -

Here are some reasons why you might want to use this feature:

• The assets and relationship fieldtypes only store IDs, so they will fetch item data using AJAX requests. If you have many of these fields in one form, you'd have a bunch of AJAX requests fire off when the page loads. Preload the item data to avoid the initial AJAX requests.
• Grid, Bard, and Replicator fields all preload values for what a new row/set contains, plus the recursive meta values of any nested fields.

Replicator preview

When Replicator (or Bard) sets are collapsed, Statamic will display a preview of the values within it.

By default, Statamic will do its best to display your fields value. However, if you have a value more complex than a simple string or array, you may want to customize it.

You may customize the preview text by calling defineReplicatorPreview from your Vue component. For example:

const { defineReplicatorPreview } = Fieldtype.use(emit, props);

defineReplicatorPreview(() => props.value.join('+'));

Hot Tip!

This does support returning an HTML string so you could display image tags for a thumbnail, etc. Just be aware of the limited space.

Index fieldtypes

In listings (collection indexes in the Control Panel, for example), string values will be displayed as a truncated string and arrays will be displayed as JSON.

You can adjust the value before it gets sent to the listing with the preProcessIndex method:

public function preProcessIndex($value)
{
    return str_repeat('*', strlen($value));
}

If you need extra control or functionality, fieldtypes may have an additional "index" Vue component.

import UppercaseIndexFieldtype from './UppercaseIndexFieldtype.vue';

// Should be named [snake_case_handle]-fieldtype-index
Statamic.$components.register('toggle_password-fieldtype-index', UppercaseIndexFieldtype);

<script setup>
import { IndexFieldtype } from '@statamic/cms';

const props = defineProps(IndexFieldtype.props);

const numberOfUppercaseCharacters = computed(() => {
    return [...props.value].filter(char => char >= 'A' && char <= 'Z').length;
});
</script>

<template>
    <div>String contains {{ numberOfUppercaseCharacters }} uppercase characters.</div>
</template>

The IndexFieldtype composable will provide you with a value prop so you can display it however you'd like. Continuing our example above, we will calculate how many characters of the given string are uppercase.

Augmentation

By default, a fieldtype will not perform any augmentation. It will just return the value as-is.

You can customize how it gets augmented with an augment method:

public function augment($value)
{
    return strtoupper($value);
}

Read more about augmentation

Accessing other fields

If you find yourself needing to access other form field values, configs, etc., you can reach into the publish form store from within your Vue component:

import { injectPublishContext } from '@statamic/ui';
const { values } = injectPublishContext();

// Do what you need to with values
console.log(values.value.title)
